Design of a Single Person Cab Environment for an Asphalt Paver

Situation: Design an enclosed cab environment to improve operating conditions and meet transport height constraints of three meters

Task: Evaluate the economic feasibility of the concepts with a bill of materials containing price uncertainties

Action: Modeled the price uncertainties and uncertainties associated with the paving operation process using distributions (Triangular, Normal, uniform). Applied Monte Carlo simulation to quantify uncertainties to determine the most likely NPV and IRR values.

Result: Determined the vinyl concept was the most economical choice after evaluating uncertainties.

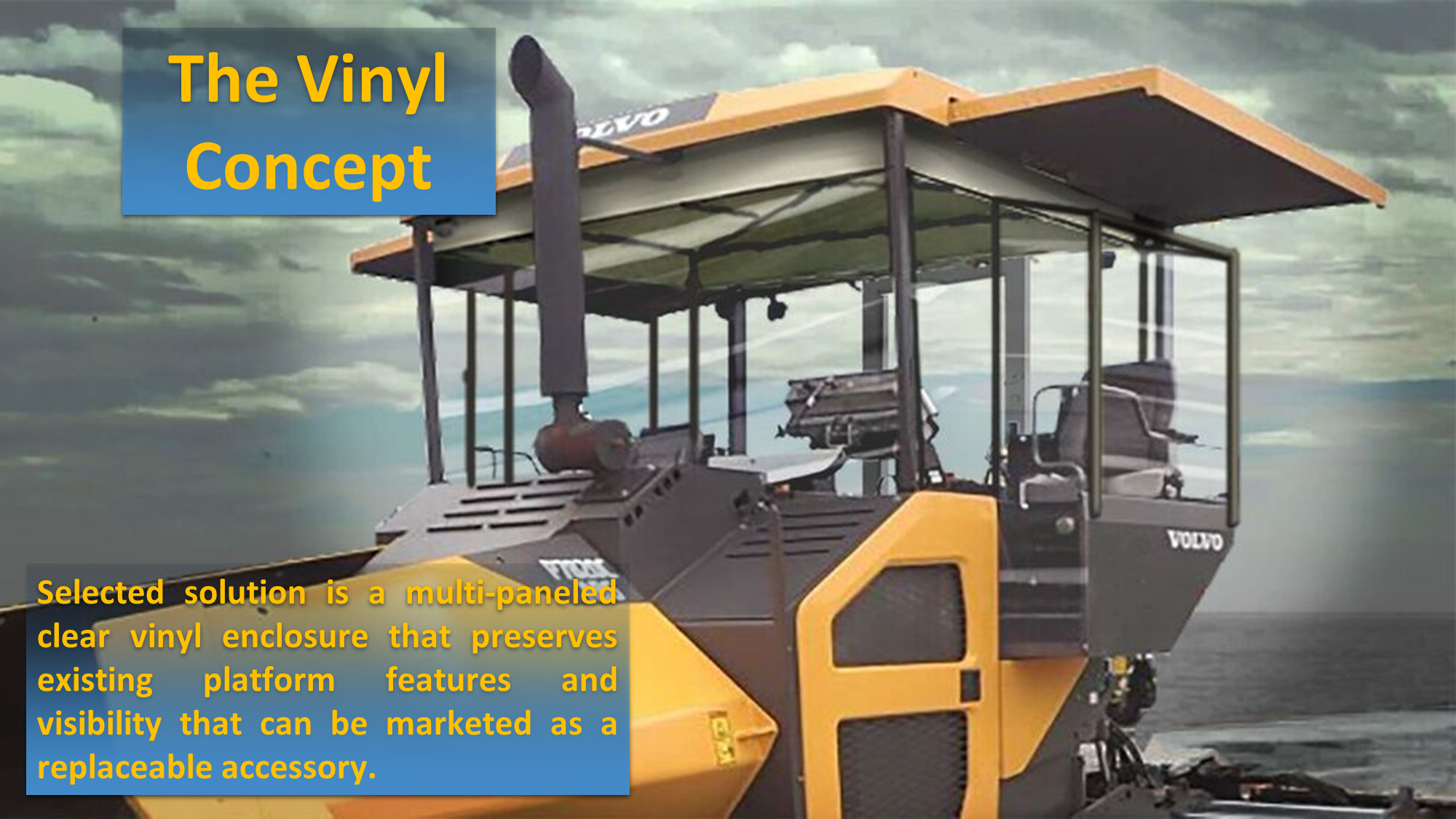

Shows a Volvo paver with a vinyl screen. ×

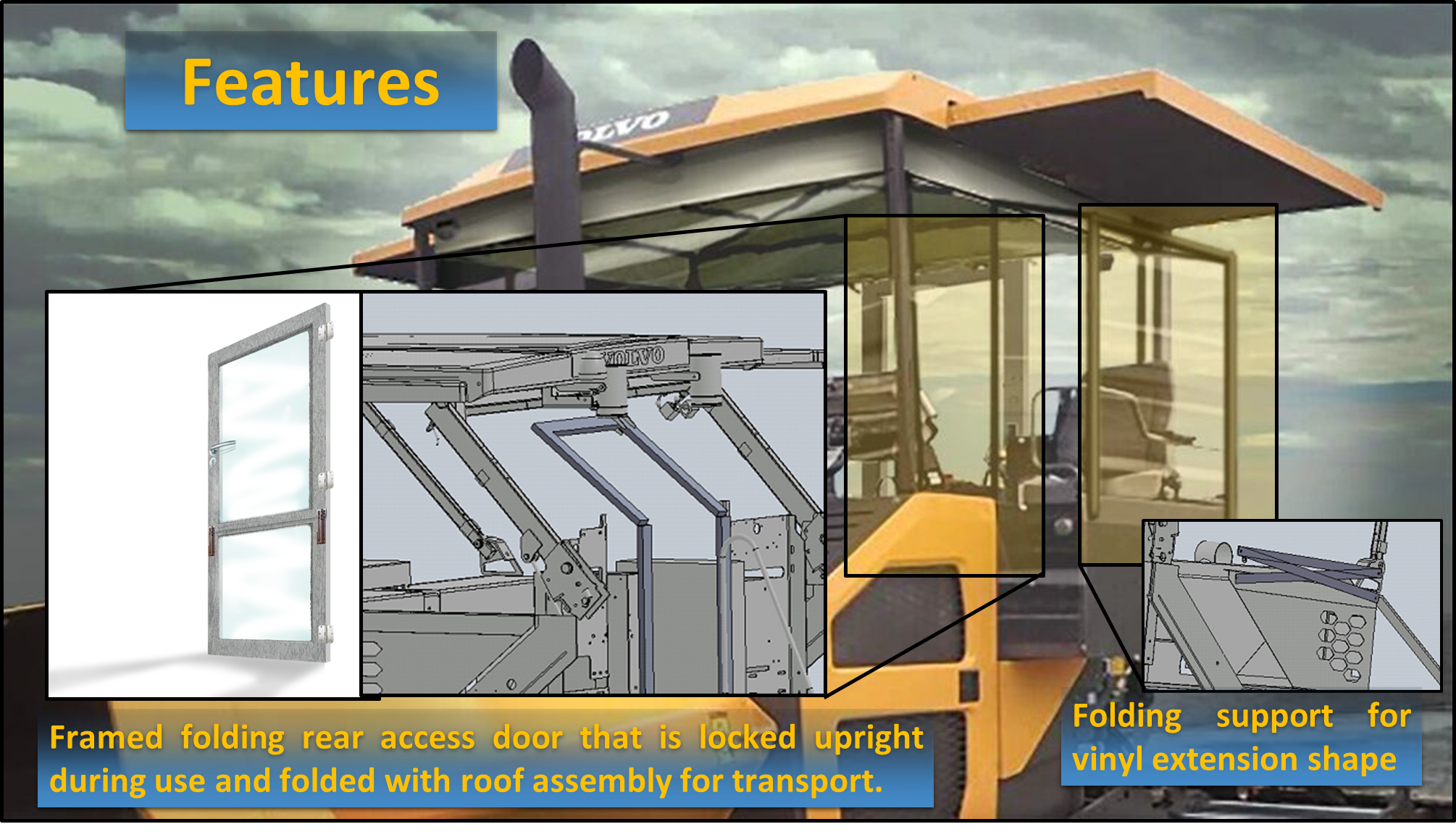

Shows features designed in Solidworks included in the vinyl design. ×

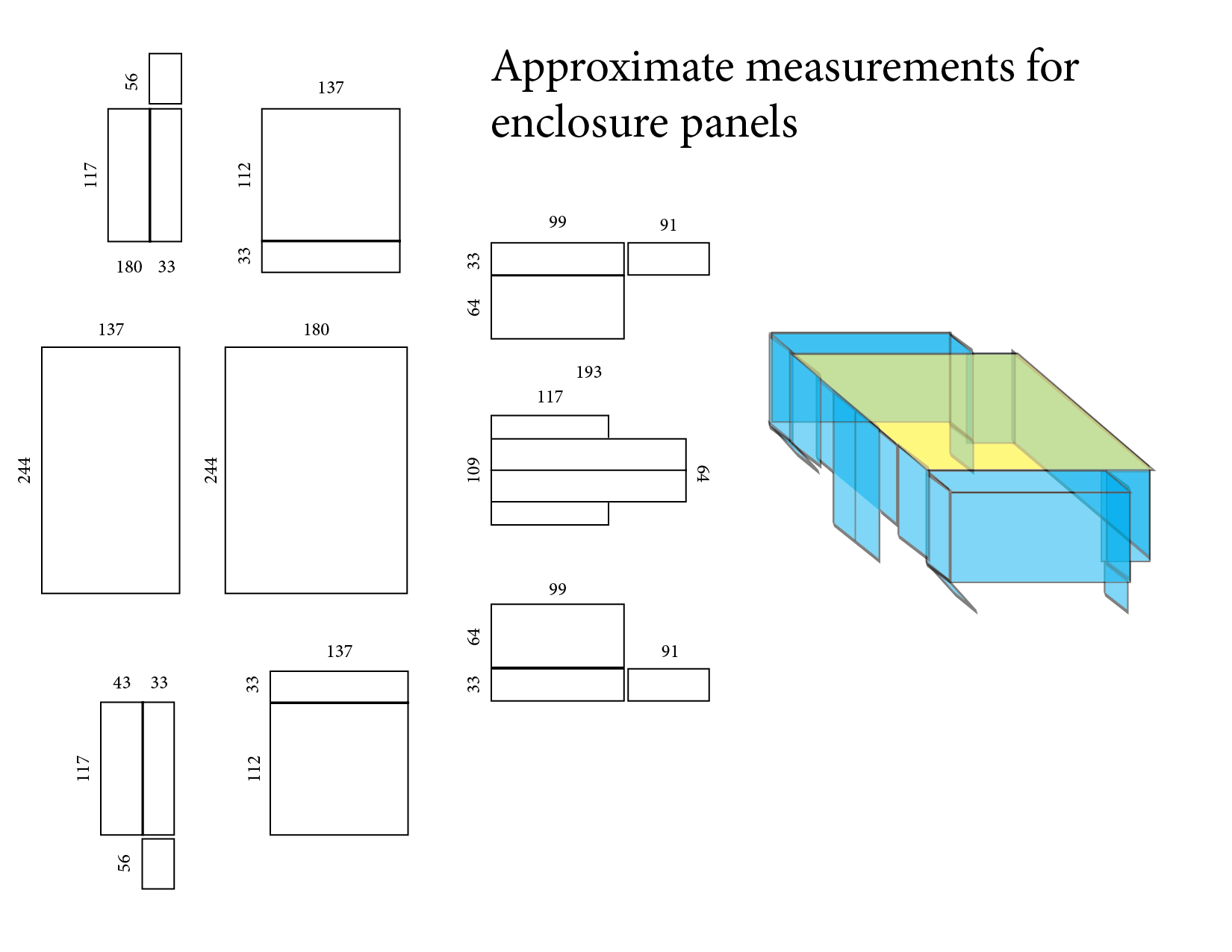

Shows the Vinyl pattern with measurements to fit the cab. ×

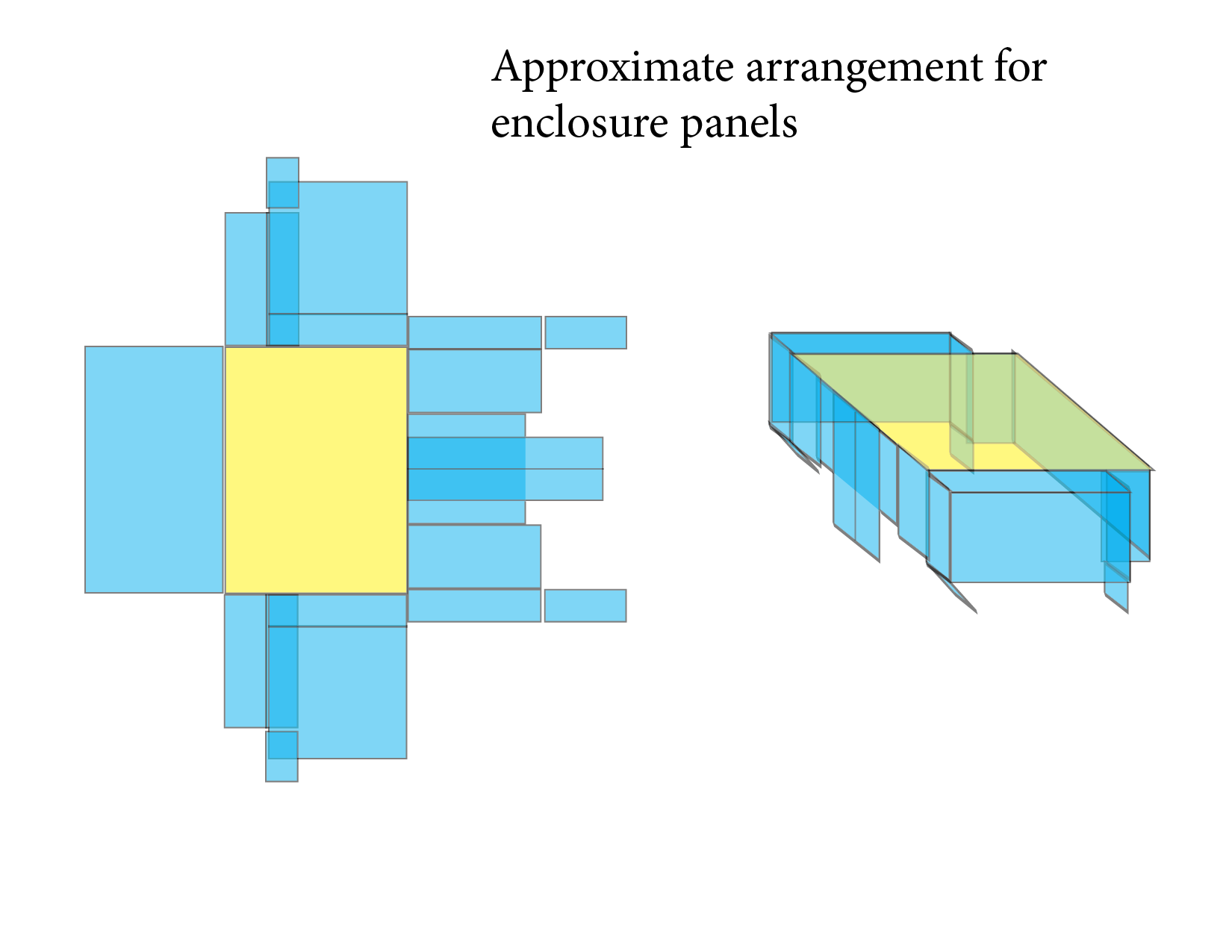

Shows the arrangement of the vinyl enclosure. ×

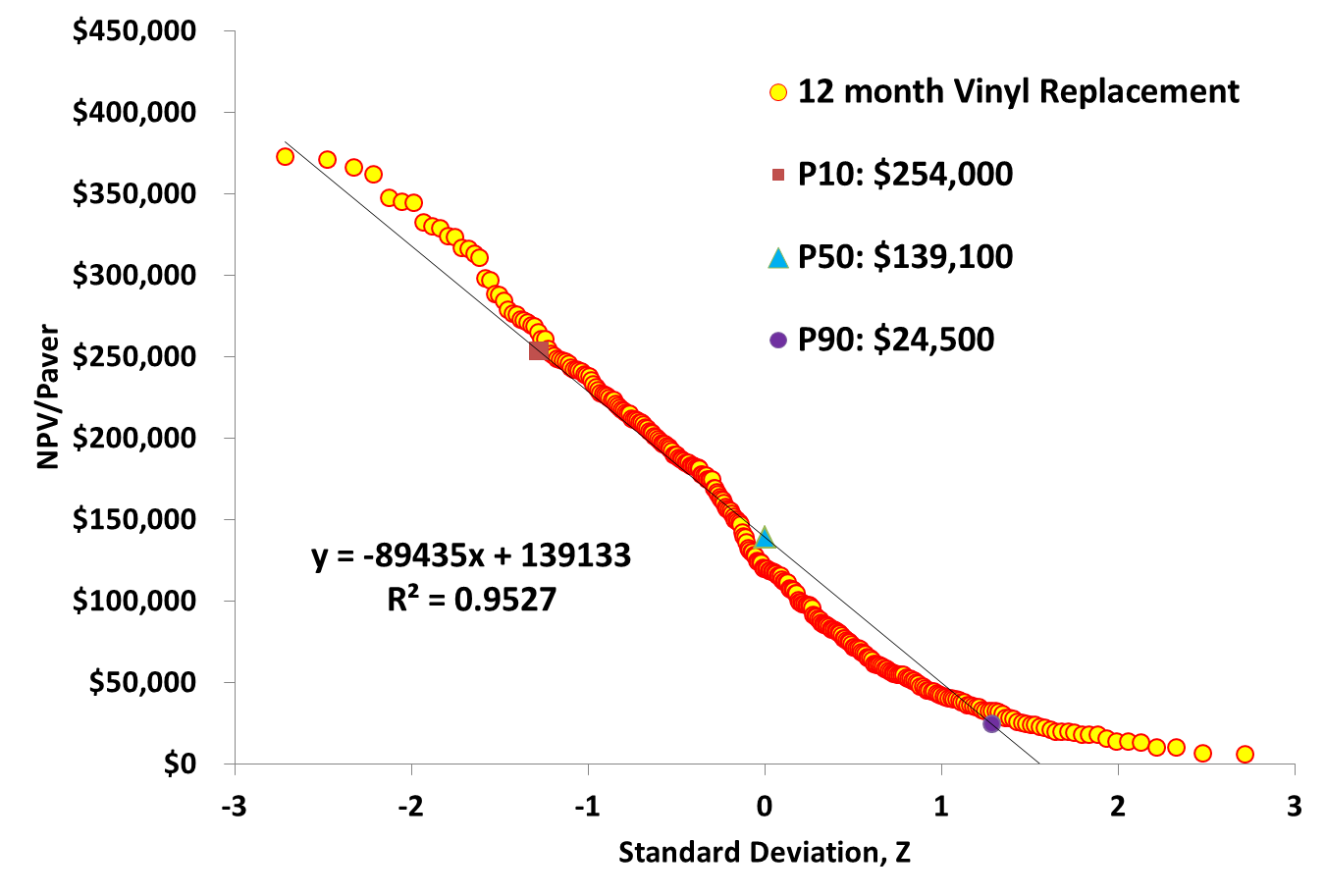

Results from Monte Carlo simulation assuming a 12 month vinyl replacement interval. ×

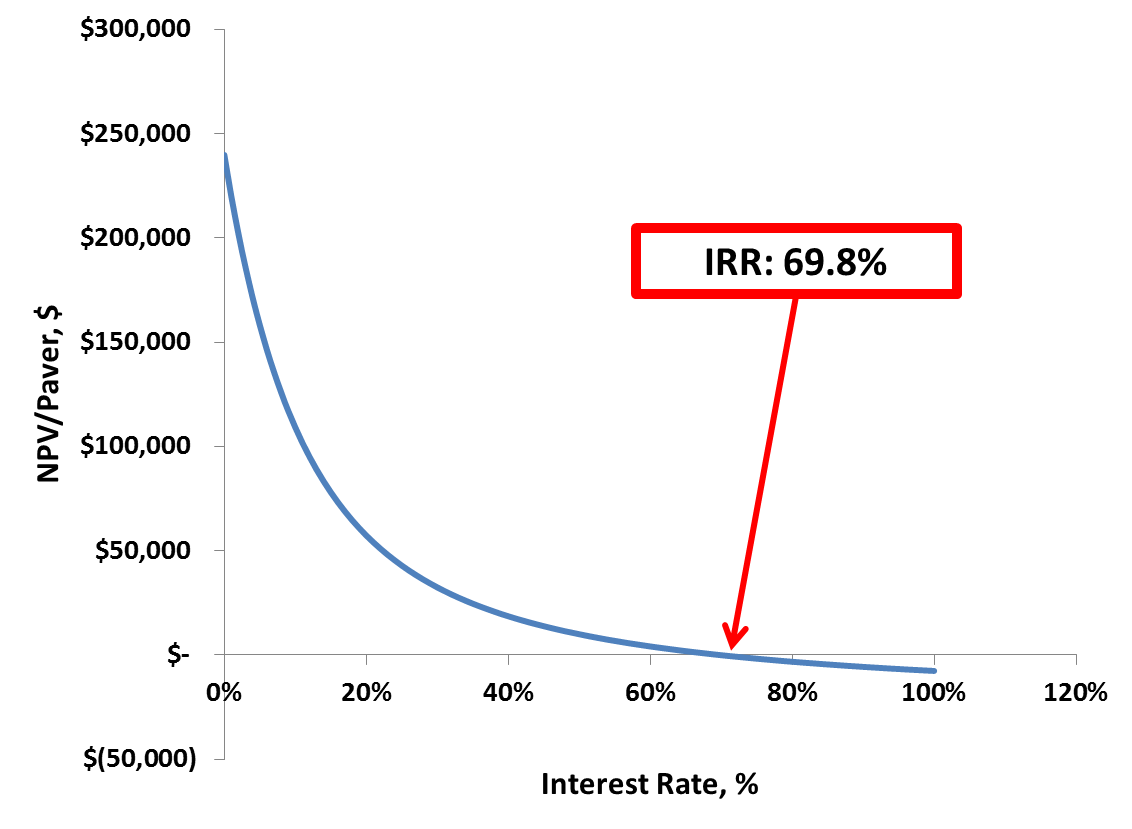

IRR of the rotate actuate elevate concept. ×

IRR of the scissor fold concept ×

IRR of the vinyl concept. ×

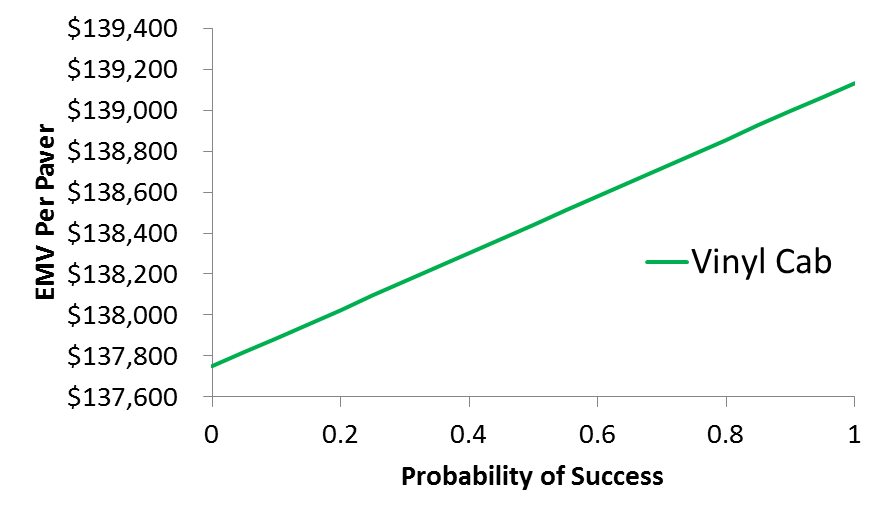

Estimated monetary value over a range of probabilities for the vinyl concept. The probability of the EMV is influenced by the replacement interval of the vinyl. ×
